HDQLINE Youngtimer

These monitors have been produced for the Olympic Summer Games in Tokio and will be checked and re-calibrated. We sell them with a special discount. All monitors come with a limited warranty of 2 years.

> Get a quote

Phone: +49 89 419671 0
Fax: +49 89 419671 9999
contact@hdqline.com

  • HDP 240-A 24" HDQLINE FHD Broadcast Monitor

    on request (3 pcs)
    Download Datasheet
    Type Multiformat HDTV LC Display, LED backlight
    Screen Size 24" wide format
    Aspect Ratio 16:10
    Native Resolution 1920 x 1200 Pixels
    Effective Screen Size 518.4mm (H) x 324.0mm (V)
    Display Colors 16.7 million
    Brightness / max. Brightness 100 cd/m² (conform to EBU) or user selectable / max. 300cd/m²
    Contrast Ratio 1000:1 max.
    Response Time 14ms (grey to grey)
    Viewing Angle H-178° / V-178°
  • QDP 550-A 55" HDQLINE UHD Broadcast Monitor

    on request (2 pcs)
    Download Datasheet
    Type Multiformat HDTV LC Display - 10 bit panel, LED backlight
    Screen Size 55" wide format
    Aspect Ratio 16:9
    Native Resolution 3840 x 2160 Pixels
    Effective Screen Size 1209.60mm (H) x 680.40mm (V)
    Display Colors 1.06 billion
    Brightness / max. Brightness 100 cd/m² (conform to EBU) or user selectable / max. 500 cd/m²
    Contrast Ratio 1000:1 max.
    Response Time 8ms (grey to grey)
    Viewing Angle H-178° / V-178

HD2line Pro

Production of HD2line Pro monitors has been stopped in 2020. We got some brand-new monitors left on stock which we can offer to very attractive prices. All monitors come with a limited warranty of 1 year.

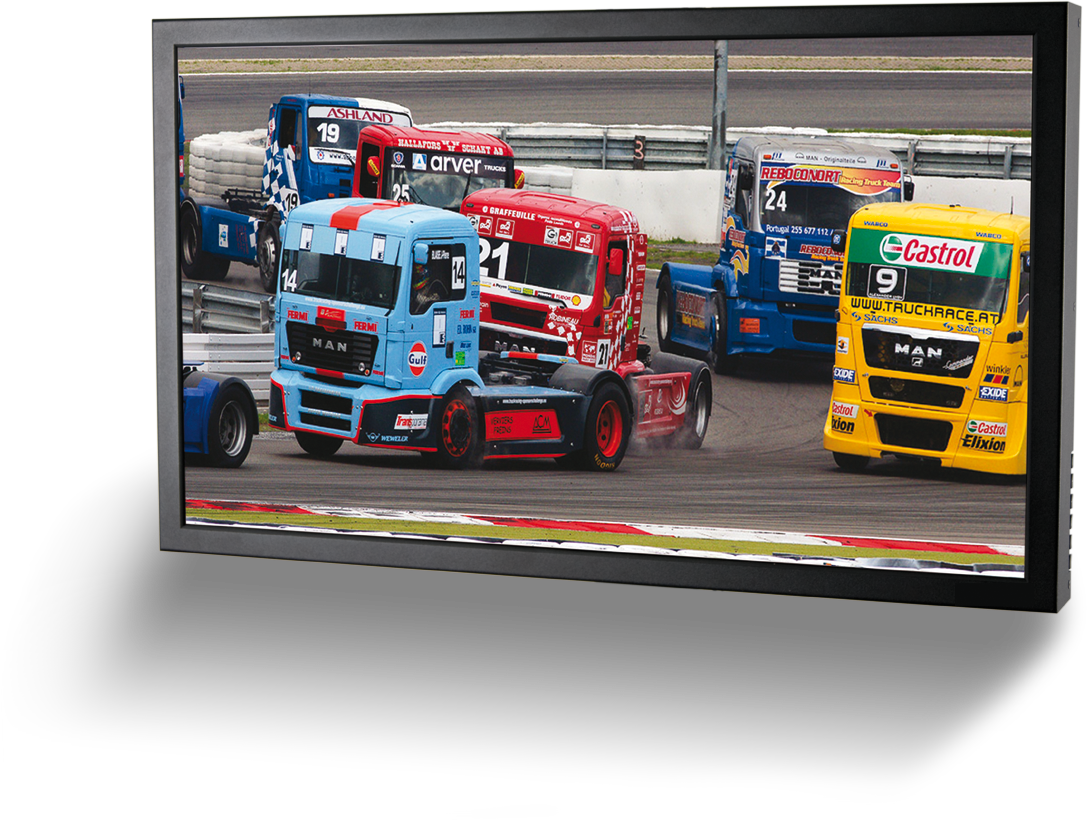

  • PDP 37W 37" HD2line Pro LC Monitor

    on request (16 pcs)
    Featuring a native resolution of 1920 x 1080
    Inputs DVI-I, VGA, RGB, Composite. Optional: 3G – SDI, Fiber Optic, analog and digital Audiomodule, Dual Channel RGB, and YCbCr 4:4:4 and YCbCr 4:2:2
    16 Bit Signal processing
    Motion adaptive De-Interlacing, extended Film Mode
    Split Screen, Safe Area Generator, static and dynamic IMD/Tally
    GPI Control, Color Reproduction conform to SMPTE, EBU and ITU.709, selective Gamma correction
    VITC and ATC
    integrated Audio-De-Embedder, Audio Level Meter
    Remote Control, Ethernet Port, serial Interface RS232, USB Port
    SPVA Technology,10Bit - 1.06B colors
    Viewing Angle 178°/178°
    Screen format 16:9
    Active image area 819.36mm(W) x 460.89mm(H)
    Response time 5msec (gray to gray)
    Brightness 500cd/m²
    Contrast 1400:1

Used rental monitors

These monitors have been produced for the SONOVTS Media Rental department. They will be checked and re-calibrated in our factory. We will sell them at very attractive prices. All monitors come with a limited warranty of 1 year.

> Get a quote

Phone: +49 89 419671 0
Fax: +49 89 419671 9999
contact@hdqline.com

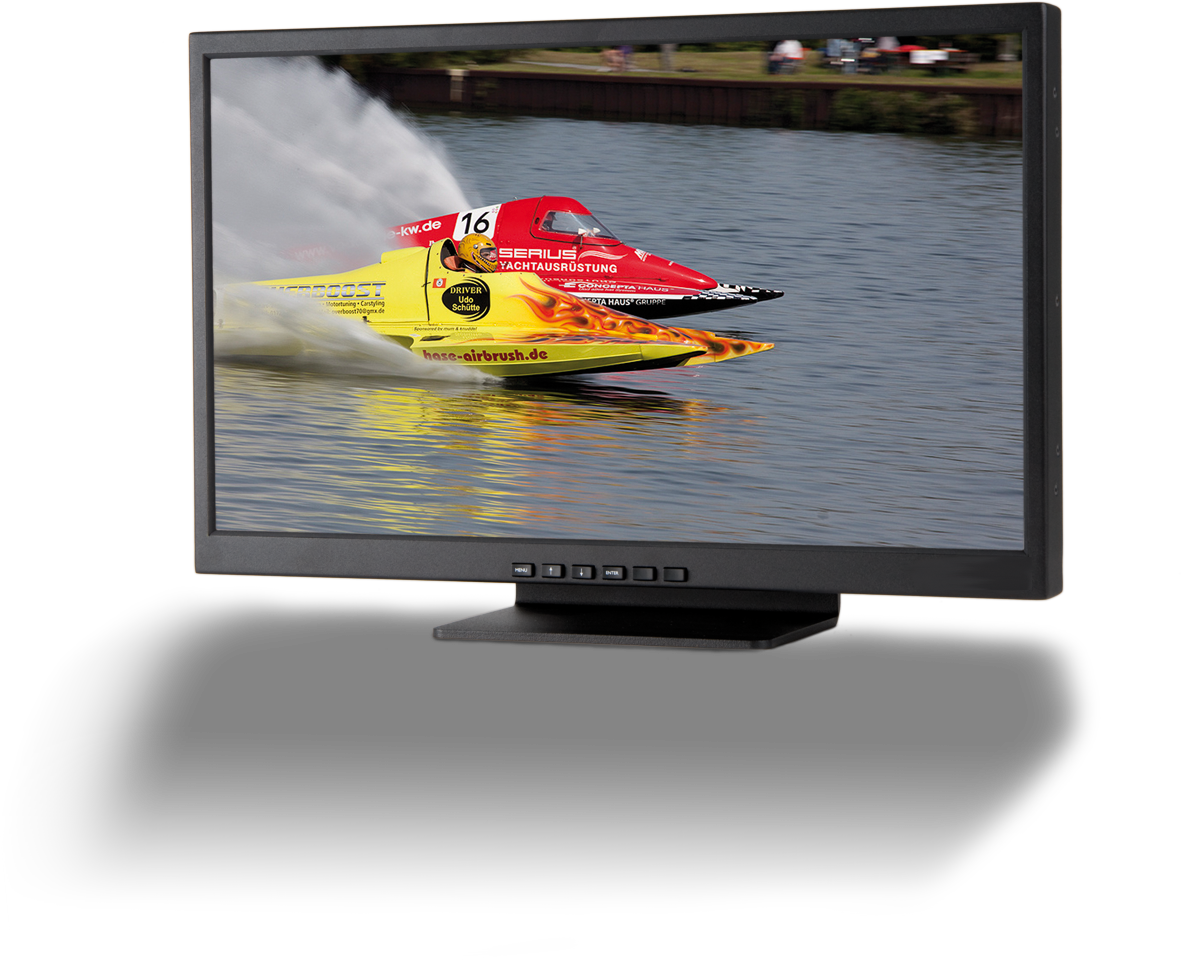

  • PDP 215W-B 21" HD2line Pro LC Monitor

    on request (6 pcs)
    Native resolution of 1920 x 1080
    Inputs DVI-I, VGA, RGB, Composite. Optional: 3G - SDI, Fiber Optic, analog and digital Audio module, Dual Channel RGB, YCbCr 4:4:4 and YCbCr 4:2:2
    16 Bit Signal processing, Motion adaptive De-Interlacing, extended Film Mode
    Split Screen, Safe Area Generator, static and dynamic IMD/Tally
    GPI Control, Color Reproduction conform to SMPTE, EBU and ITU .709, selective Gamma correction
    VITC and ATC
    integrated Audio-De-Embedder, Audio Level Meter
    Remote Control, Ethernet Port, serial Interface RS 232, USB Port
    Transmissive Technology, 8Bit - 16.7M colors
    Viewing Angle 178°/178°, Screen format 16:9
    Active image area 475.20mm(W) x 267.30mm(H)
    Responsetime 14ms (gray to gray)
    Brightness 250cd/m²
    Contrast 1000:1
    Dimensions (WxHxD) 503.10mm x 311.00mm x 113.80mm, VESA 100 Mount
    Weight 5.10 kg

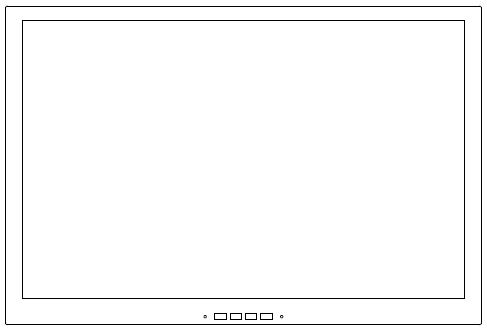

  • VTS-TFT24W 24" LC Monitor

    on request (6 pcs)
    Screen size 61 cm (24")
    Native Resolution 1.920 x 1.200 Pixels
    Type S-PVA TFT color LCD panel, 8 Bit (10 Bit Dithering)
    Backlight white-LED, CRI 75
    Aspect ratio 16:10 (native), 16:9/4:3 and more switchable
    Viewing angle H/V 140°/140° (contrast > 10:1)
    Contrast 1000:1
    Dimensions(BxHxT): 559 x 375 x 96 mm (with table base: 559 x 460-590 x 210mm)
    Weight 7,0 kg (with table base: 9,5kg)

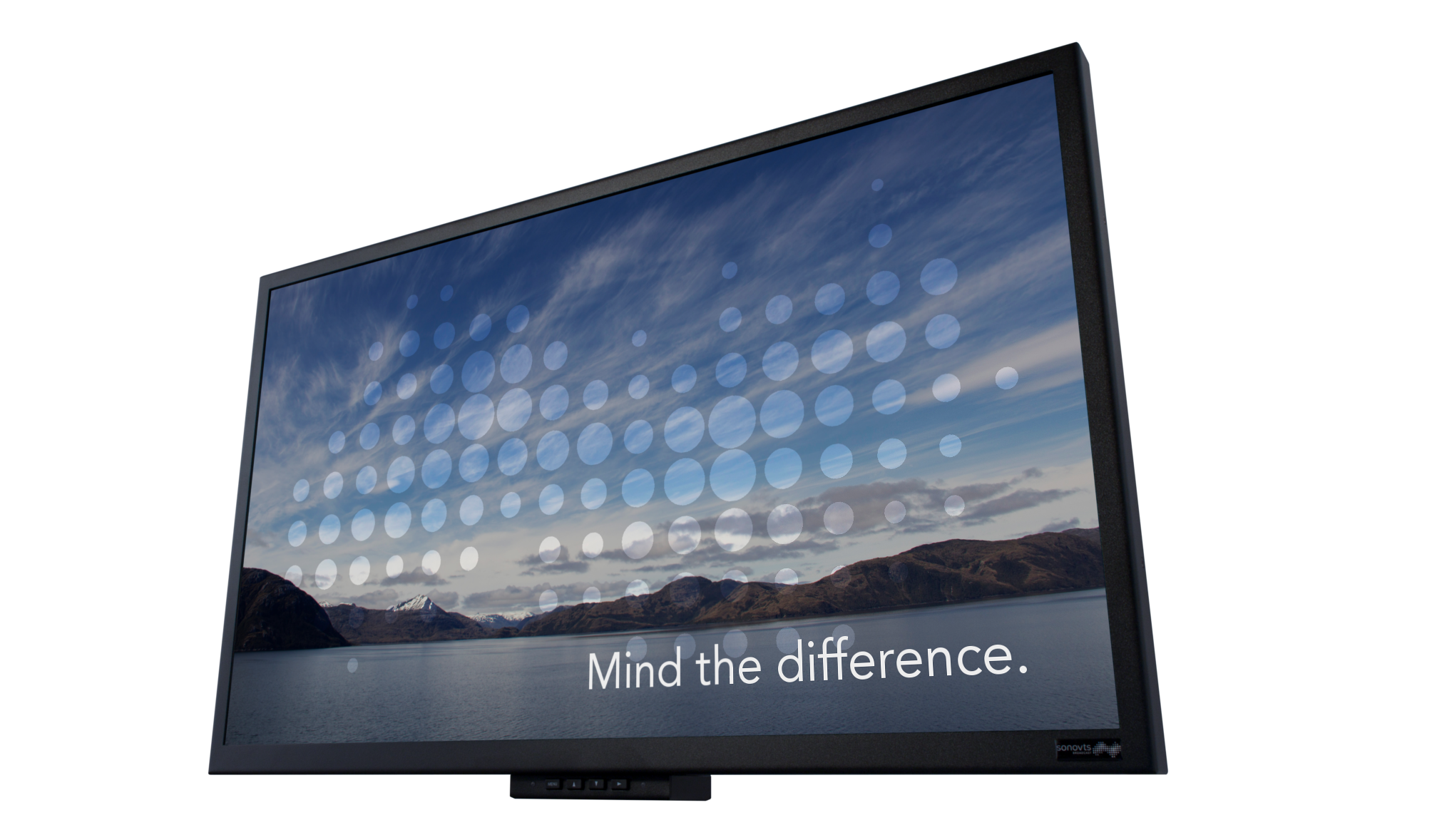

  • VTS-TFT32Q 32" LC Monitor

    on request (6 pcs)
    Screen size 80 cm (32")
    Native Resolution 1.920 x 1.080 Pixels
    Type S-IPS TFT color LCD panel, 8 Bit (10 Bit Dithering)
    Backlight white-LED, CRI 75
    Aspect ratio 16:9 (native), 16:9/4:3 and more switchable
    Viewing angle H/V 178°/178° (contrast > 10:1)
    Contrast 1300:1
    Dimensions (W x H x D) 737 x 438 x 71 mm, with extention keyboard h=454mm, (with table base: 737 x 538 x 210 mm)
    Weight 10 kg
  • PDP-42W 42" HD2line Pro LC Monitor

    on request (31 pcs)
    Native resolution of 1920 x 1080
    Inputs DVI-I, VGA, RGB, Composite. Optional: 3G - SDI, Fiber Optic, analog and digital Audio module, Dual Channel RGB, YCbCr 4:4:4 and YCbCr 4:2:2
    16 Bit Signal processing, Motion adaptive De-Interlacing, extended Film Mode
    Split Screen, Safe Area Generator, static and dynamic IMD/Tally
    GPI Control, Color Reproduction conform to SMPTE, EBU and ITU .709, selective Gamma correction
    VITC and ATC
    integrated Audio-De-Embedder, Audio Level Meter
    Remote Control, Ethernet Port, serial Interface RS 232, USB Port
    MVA Technology, 10Bit - 1.06 B colors
    Viewing Angle 178°/178°, Screen format 16:9
    Active image area 930.24mm(W) x 523.26mm(H)
    Responsetime 9ms (gray to gray)
    Brightness 500cd/m²
    Contrast 1000:1
    Dimensions (WxHxD) 960.40mm x 554.00mm x 157.00mm, VESA 200 Mount
    Weight 29.50 kg
  • PDP-42W-B 42" HD2line Pro LC Monitor

    on request (3 pcs)
    Native resolution of 1920 x 1080
    Inputs DVI-I, VGA, RGB, Composite. Optional: 3G - SDI, Fiber Optic, analog and digital Audio module, Dual Channel RGB, YCbCr 4:4:4 and YCbCr 4:2:2
    16 Bit Signal processing, Motion adaptive De-Interlacing, extended Film Mode
    Split Screen, Safe Area Generator, static and dynamic IMD/Tally
    GPI Control, Color Reproduction conform to SMPTE, EBU and ITU .709, selective Gamma correction
    VITC and ATC
    integrated Audio-De-Embedder, Audio Level Meter
    Remote Control, Ethernet Port, serial Interface RS 232, USB Port
    MVA Technology, 10Bit - 1.06 B colors
    Viewing Angle 178°/178°, Screen format 16:9
    Active image area 1039.68mm(W) 584.82mm(H)
    Responsetime 9ms (gray to gray)
    Brightness 700cd/m²
    Contrast 1000:1
    Dimensions (WxHxD) 1080.00mm x 619.00mm x 157.00mm, VESA 200 Mount
    Weight 25.60 kg
  • PDP-49W 49" HD2Line Pro LC Monitor

    on request (22 pcs)
    Native resolution of 1920 x 1080
    Inputs DVI-I, VGA, RGB, Composite. Optional: 3G - SDI, Fiber Optic, analog and digital Audio module, Dual Channel RGB, YCbCr 4:4:4 and YCbCr 4:2:2
    16 Bit Signal processing, Motion adaptive De-Interlacing, extended Film Mode
    Split Screen, Safe Area Generator, static and dynamic IMD/Tally
    GPI Control, Color Reproduction conform to SMPTE, EBU and ITU .709, selective Gamma correction
    VITC and ATC
    integrated Audio-De-Embedder, Audio Level Meter
    Remote Control, Ethernet Port, serial Interface RS 232, USB Port
    IPS Technology, LED Backlight, 10Bit - 1.07 B colors
    Viewing Angle 178°/178°, Screen format 16:9
    Active image area 1073.8mm(H) 604mm(V)
    Responsetime 8ms (gray to gray)
    Brightness 700cd/m²
    Contrast 1300:1
    Dimensions (WxHxD) 1095.60mm x 628.80mm x 118.80mm, VESA 200 Mount
    Weight 21,10 kg

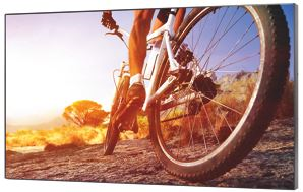

  • PDP-55XSB-B 55" borderless HD2line Pro LC Monitor

    on request (21 pcs)
    Native resolution of 1920 x 1080
    Inputs DVI-I, VGA, RGB, Composite. Optional: 3G - SDI, Fiber Optic, analog and digital Audio module, Dual Channel RGB, YCbCr 4:4:4 and YCbCr 4:2:2
    16 Bit Signal processing, Motion adaptive De-Interlacing, extended Film Mode
    Split Screen, Safe Area Generator, static and dynamic IMD/Tally
    GPI Control, Color Reproduction conform to SMPTE, EBU and ITU .709, selective Gamma correction
    VITC and ATC
    integrated Audio-De-Embedder, Audio Level Meter
    Remote Control, Ethernet Port, serial Interface RS 232, USB Port
    IPS Technology, 10Bit - 1.06 B colors
    Viewing Angle 178°/178°, Screen format 16:9
    Active image area 680.4 mm (H) x 1209.6 mm (W)
    Responsetime 12ms (gray to gray)
    Brightness 700cd/m²
    Contrast 1000:1
    Dimensions (WxHxD) 1217.5 mm x 688.5 mm x 150 mm VESA 400 Mount
    Weight 30 kg
